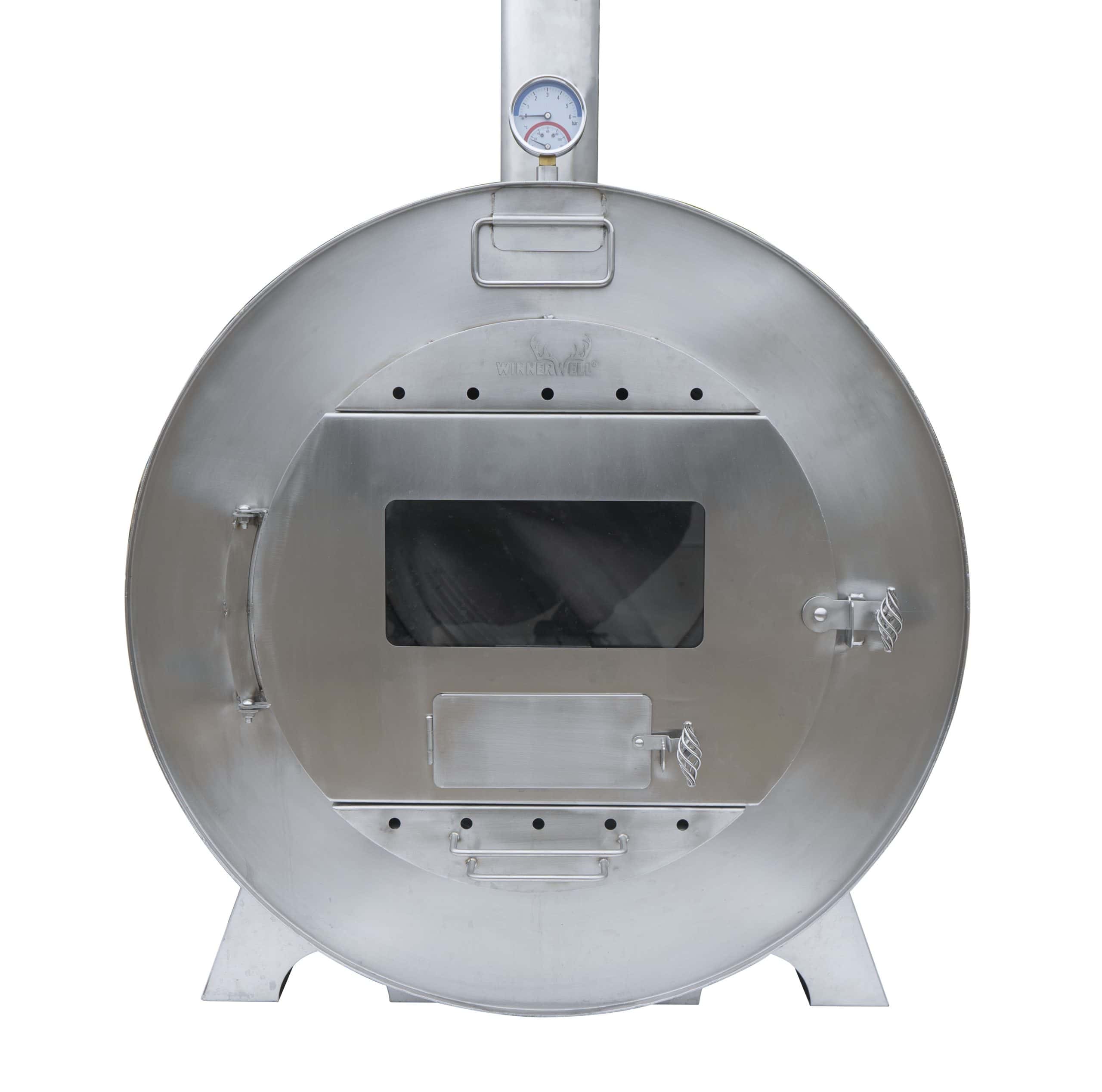

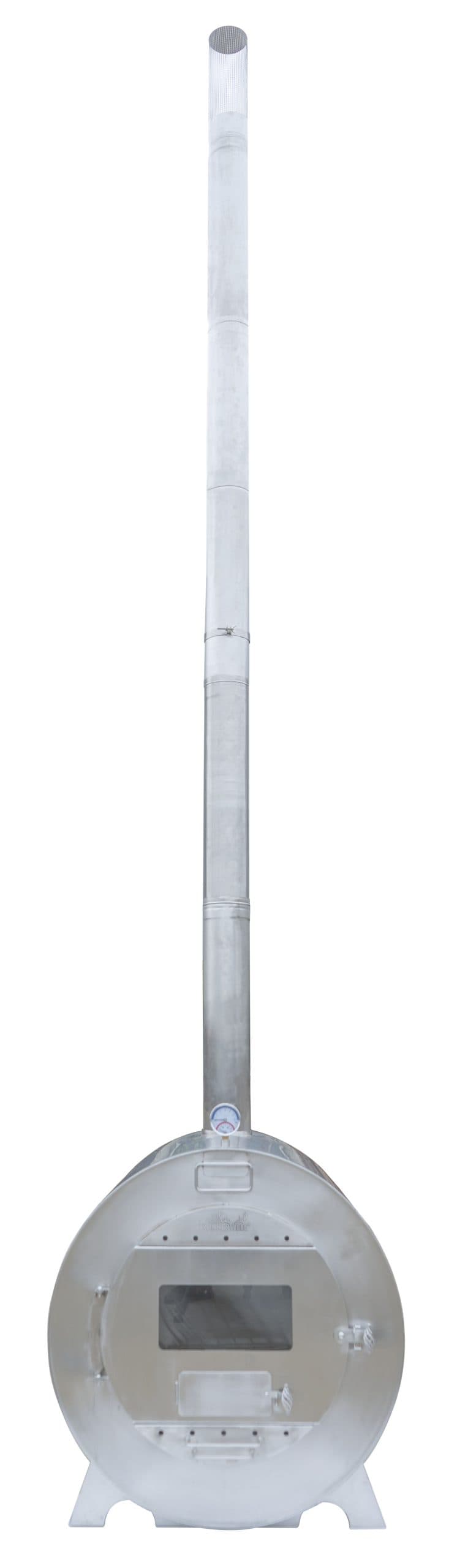

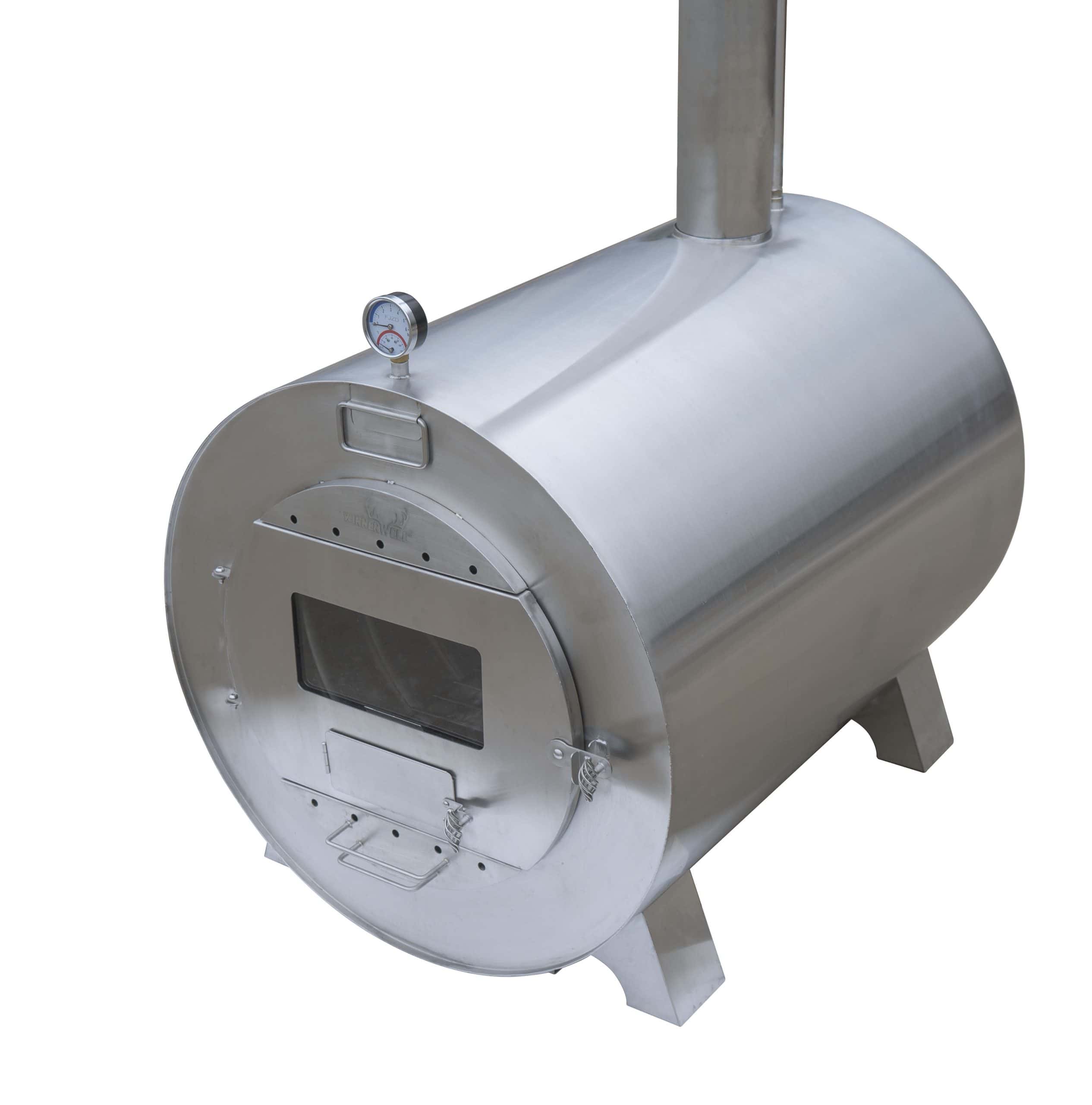

Winnerwell Wood Burn Stainless Steel L-sized Hot Tub and Pool Water Heater

Winnerwell Wood Burn Stainless Steel L-sized Hot Tub and Pool Water Heater          Patented Design

● This water heater is a precision-built, high-efficiency water heater designed specifically for hot tubs. It circulates water using the principle “thermosiphon”-hot water rises and creates low pressure, which sucks water from below.

● It eliminates the need for a circulating pump and electricity, making it possible to heat the water in a hot tub with the heater placed externally. A big advantage is that there will be more space in the tub, which in turn means a smaller model can be selected.  (For use with a pool rather than a hot tub, a pump is always suggested)

● Every detail of the Winnerwell® hot tub water heater has been engineered for maximum efficiency, utilizing a sophisticated heat exchange design. The stainless steel body surrounding the firebox is actually a double-wall water-jacket, making the entire firebox a heat-transferring surface.

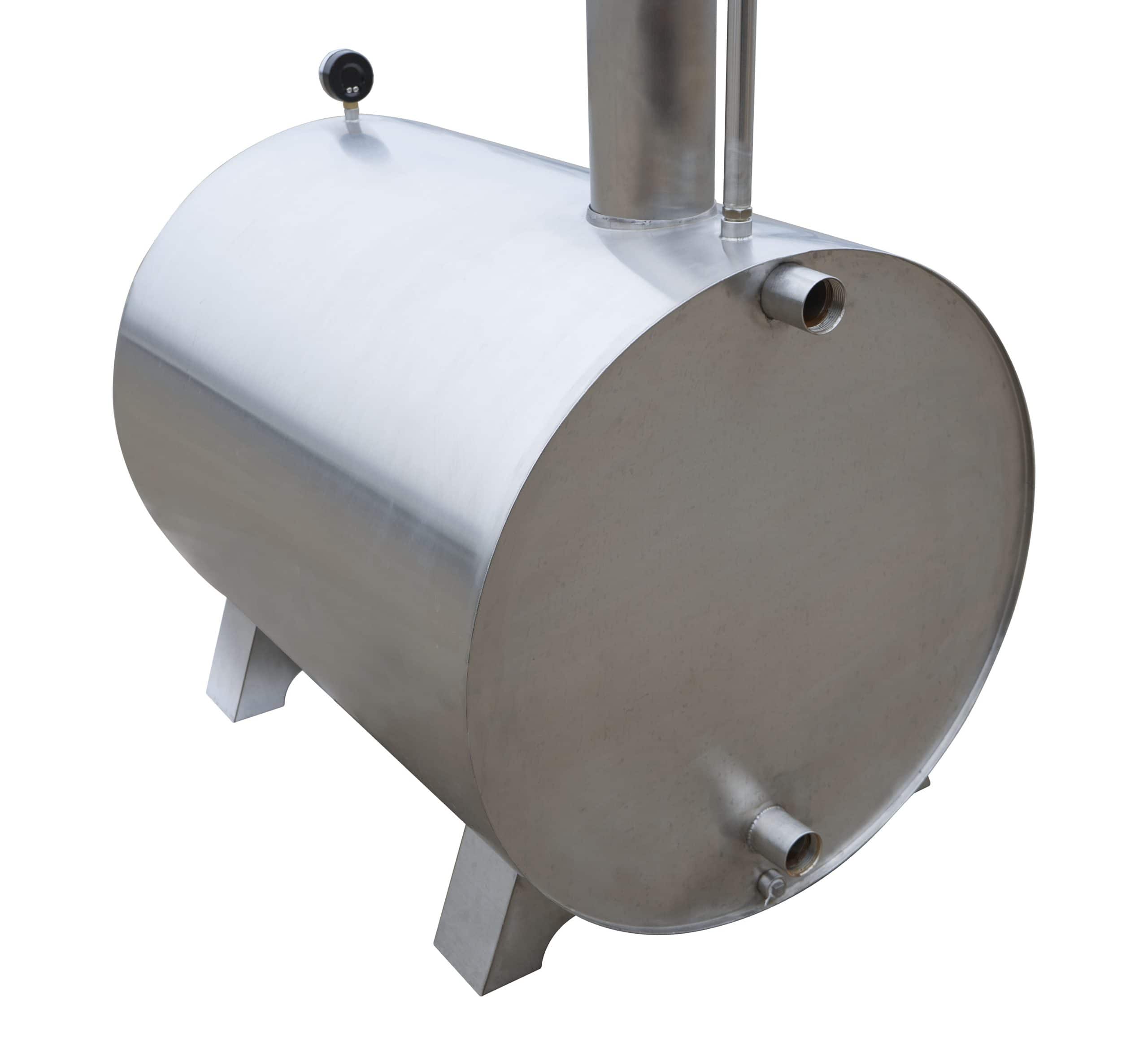

(Inlet & outlet take a 1 1/2” sealing tapered pipe thread)

Specification:

Material: AISI304 Stainless Steel

Output : 35KW

Heater Body Dimension: D×L=600mm×800mm
Firebox Dimension: D×L=380mm×700mm
Pipe Diameter: 120mm

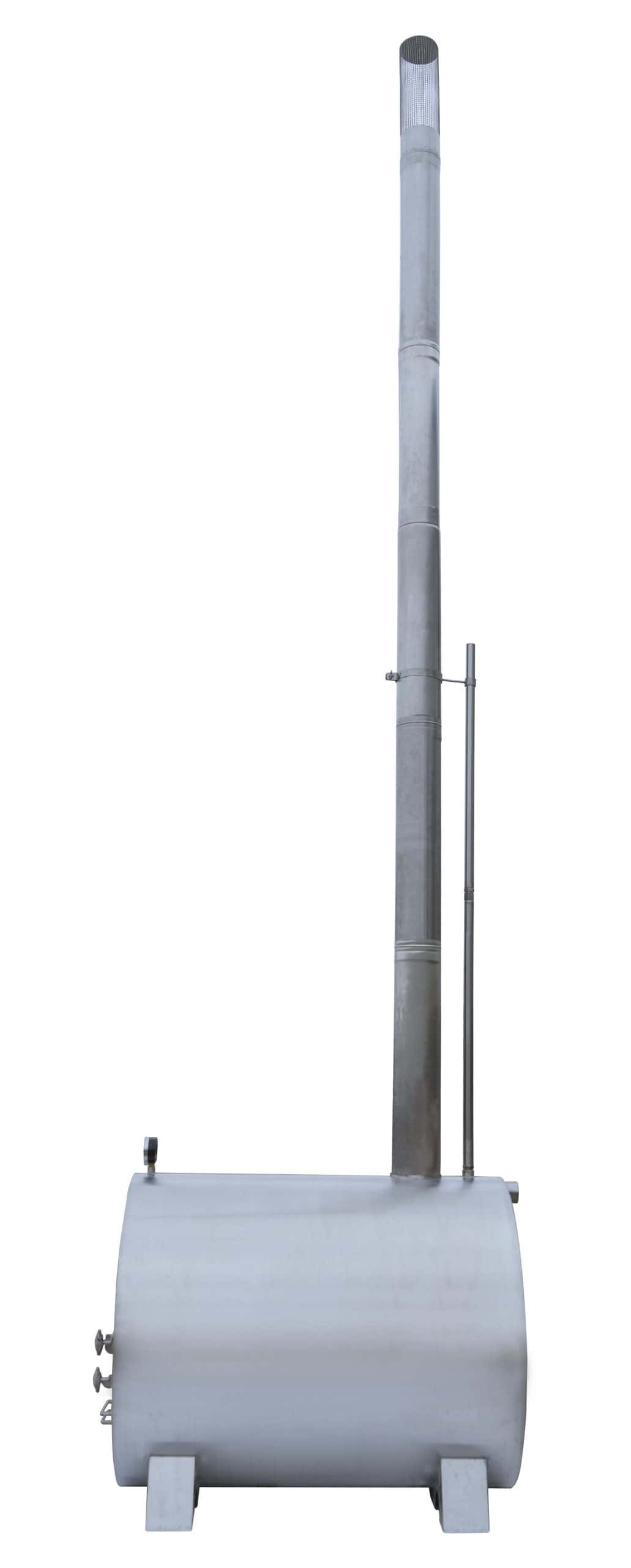

Assembly Height (approx.): 3900mm
Net Weight (approx.): 37kg
